Model #:
AHDA130BL
Color:
Black

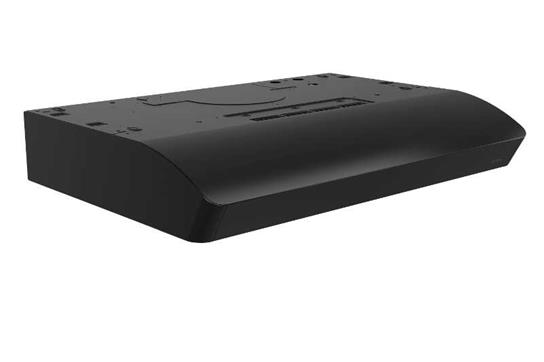

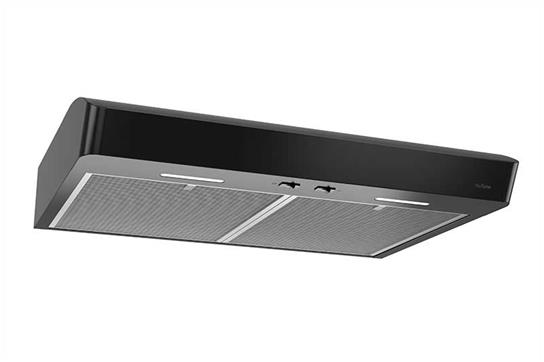

NEW - Osmos 30" 300 CFM 1.2 Sones Black Range Hood
NEW - Osmos 30" 300 CFM 1.2 Sones Black Range Hood
Price
Call for Our Best Price
We might not be able to fulfill your order for the quantity requested
Color
Black
Features
- The Captur system's advanced blower design features a forward positioned centric inlet to remove smoke and odor faster. Three-speed blower control exhausts at 300 CFM
- Smooth-flow blower wheel design and high flow filters ensure quiet, 1.2 Sones operation at normal speed
- Bright, two-level LED modules- supported by a 3-year warranty- illuminate evenly and are tested in cooking environments to ensure long life without dimming
- Tap-touch, 3-speed capacitive control features a smooth, easy-to-clean surface
- Dishwasher-safe, micro-mesh filters provide efficient grease removal. The filter clean reminder ensures they will always maintain a high level of capture (model HPFAMM30 [service part #S99010434-002])
- EZ1 brackets make it easy for single-person installation in less than half the time of traditional methods
- ADA compliant, remote operation is possible using a standard UL approved momentary wall switch. Requires ADA Adaptor Kit available August 2017
- Non-duct capable with use of charcoal filters (model HPF30 [service part #S97020466]), sold separately. Hidden louvers on top of hood exhaust away from cabinetry
Product Description
The simple, waterfall curve of Osmos complements Traditional kitchen design in a brand new way. Remarkable lighting along with superior smoke and odor removal will bring a smile to every cook in the kitchen.
Specification
| General | |
| Accommodates Ceiling Height | N/A |
| ADA Compliance | See Additional Information Above |
| Boost Mode | No |
| CFM (Airflow) | 150 |
| CFM (Airflow) - Max | 300 |
| Color/Finish | Black |
| Control Feature Filter Reminder | Yes |
| Damper Included | Yes |
| Delay Shut Off | No |
| Digital Clock | No |
| Duct Connector Size | 3-1/4 x 10, 7 round or Non-Ducted |
| ENERGY STAR certified product | No |
| Filter Included | Yes |
| Filter Type | Aluminum Micro Mesh |
| Flue Accommodates ceilings up to xx ft | N/A |
| Heat Sentry - Temperature Sensor | No |
| Light Bulb Quantity | 2 |
| Light Bulb Wattage | 4W/module |
| Light Bulbs Included | Yes |
| Lighting Function | Two-level |
| Lighting Type | LED |
| Minimum Height Above Cook Top | 18 from bottom of hood |
| Mounting Type | Undercabinet |
| Nightlight | No |
| Non-Ducted Filter Included | No |
| Non-Ducted Recirculation Capable | Convertible built-in |
| Product Depth (inches) | 19-5/8 |
| Product Height (inches) | 6 |
| Product Width (inches) | 30 |
| Rated Amps | 0.65 |
| Remote Control | No |
| Sones Max | 5.5 |
| Sones Normal | 1.2 |
| Speed Levels | 3 |
| Switch Style | Capacitive |
| UL Listed | Yes |
| Voltage | 120 |
Documentation
From the Manufacturer
Disclosures
Proposition 65 Warning for California ResidentsCancer and Reproductive Harm - P65Warnings.ca.gov
The simple, waterfall curve of Osmos complements Traditional kitchen design in a brand new way. Remarkable lighting along with superior smoke and odor removal will bring a smile to every cook in the kitchen.
Features
- The Captur system's advanced blower design features a forward positioned centric inlet to remove smoke and odor faster. Three-speed blower control exhausts at 300 CFM
- Smooth-flow blower wheel design and high flow filters ensure quiet, 1.2 Sones operation at normal speed
- Bright, two-level LED modules- supported by a 3-year warranty- illuminate evenly and are tested in cooking environments to ensure long life without dimming
- Tap-touch, 3-speed capacitive control features a smooth, easy-to-clean surface
- Dishwasher-safe, micro-mesh filters provide efficient grease removal. The filter clean reminder ensures they will always maintain a high level of capture (model HPFAMM30 [service part #S99010434-002])
- EZ1 brackets make it easy for single-person installation in less than half the time of traditional methods
- ADA compliant, remote operation is possible using a standard UL approved momentary wall switch. Requires ADA Adaptor Kit available August 2017
- Non-duct capable with use of charcoal filters (model HPF30 [service part #S97020466]), sold separately. Hidden louvers on top of hood exhaust away from cabinetry
