Model #:
KGCC506RWW
Color:
White

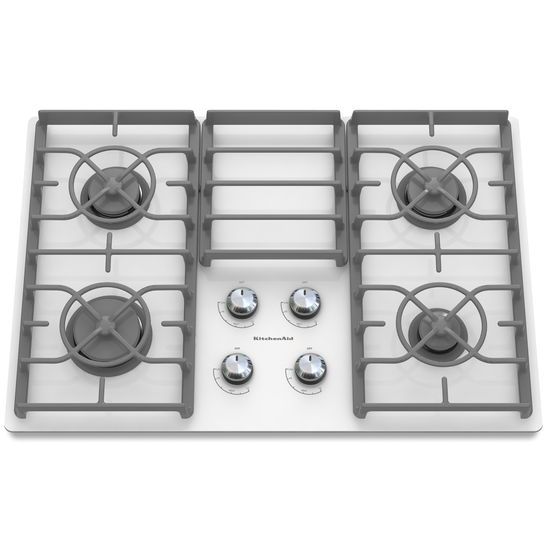

30-Inch 4 Burner Gas Cooktop, Architect® Series II
30-Inch 4 Burner Gas Cooktop, Architect® Series II
Dimensions
Width: 30.19
Height: 2.88
Depth: 20.31
Color
White
Also Comes In
Model #:
KGCC506RBL
Black
Features
Gas-on-Glass Surface
- Offers a stylish appearance and wipes clean easily.
- Provides the ability to use high-temperature cooking methods such as searing, stir-frying, and wok cooking as well as low temperatures suitable for simmering.
- Allows more accurate simmer control at the lowest setting, and is ideal for cooking smaller quantities of food, using smaller pots and pans.
- Automatically lights burners so no standing pilot light is needed.
- Enhance the beautiful look of the cooktop and allow easy movement of cookware around the entire cooking surface.
- Allows you to convert the cooktop so it can be used with LP gas.
Product Description
This sleek, gas-on-glass cooktop is a stylish option that complements many countertop surfaces. The easy-to-clean surface features full-width cast-iron grates that allow you to slide cookware across the cooktop without lifting. Powerful burner options range from 6,000 to 17,000 BTU allowing you to get exceptional results for simmering a sauce or searing a steak.
Rebates
Craft Your Dream Kitchen and unlock Rebates up to $3000 - Craft Your Dream Kitchen and unlock Rebate...
Craft Your Dream Kitchen and unlock Rebates up to $3000 on all KitchenAid major appliances via a prepaid card by mail.
Start Date: 01/01/2025
End Date: 06/30/2025
Specification
| Accessory Relationships | |
| Accessory Relationships | Yes |
| Certifications|ADA Compliant | |
| Certifications|ADA Compliant | No |
| Certifications|Prop 65 | |
| Certifications|Prop 65 | Standard |
| Certifications|UL | |
| Certifications|UL | Yes |
| Controls|Control Location | |
| Controls|Control Location | Front |
| Controls|Control Type | |
| Controls|Control Type | Knobs |
| Controls|Infinite Heat Controls | |
| Controls|Infinite Heat Controls | Yes |
| Controls|Knob Color | |
| Controls|Knob Color | Color Coordinated |
| Controls|Knob Type | |
| Controls|Knob Type | Dishwasher-Safe Plastic |
| Cooktop Details|Cooktop Element Style | |
| Cooktop Details|Cooktop Element Style | Sealed Burner |
| Cooktop Details|Cooktop Surface Color | |
| Cooktop Details|Cooktop Surface Color | Color Coordinated |
| Cooktop Details|Grate Details | |
| Cooktop Details|Grate Details | Cast Iron Grates,Continuous,Matte Finish |
| Cooktop Details|Ignition Type | |
| Cooktop Details|Ignition Type | Direct Spark Ignition |
| Cooktop Details|Left Front Element-Burner Power | |
| Cooktop Details|Left Front Element-Burner Power | 17,000 BTU |
| Cooktop Details|Left Front Element-Burner Type | |
| Cooktop Details|Left Front Element-Burner Type | Professional Burner |
| Cooktop Details|Left Rear Element-Burner Power | |
| Cooktop Details|Left Rear Element-Burner Power | 9000 BTU |
| Cooktop Details|Left Rear Element-Burner Type | |
| Cooktop Details|Left Rear Element-Burner Type | Burner |
| Cooktop Details|Number of Cooking Element-Burners | |
| Cooktop Details|Number of Cooking Element-Burners | 4 |
| Cooktop Details|Number of Grates | |
| Cooktop Details|Number of Grates | 3 |
| Cooktop Details|Right Front Element-Burner Power | |
| Cooktop Details|Right Front Element-Burner Power | 6000 BTU |
| Cooktop Details|Right Front Element-Burner Type | |
| Cooktop Details|Right Front Element-Burner Type | Simmer |
| Cooktop Details|Right Rear Element-Burner Power | |
| Cooktop Details|Right Rear Element-Burner Power | 12,500 BTU |
| Cooktop Details|Right Rear Element-Burner Type | |
| Cooktop Details|Right Rear Element-Burner Type | Burner |
| Description|Combinations with Oven | |
| Description|Combinations with Oven | KOSC504,KOSE500,KOSE507,KOSE900,KOST100,KOST107 |
| Description|Cooktop Type | |
| Description|Cooktop Type | Standard |
| Description|Fuel Type | |
| Description|Fuel Type | Gas |
| Description|Size (in.) | |
| Description|Size (in.) | 30 |
| Details|Cooktop Surface Material | |
| Details|Cooktop Surface Material | Ceramic Glass |
| Dimensions | |
| Carton Depth | 24 1/2 inch |
| Carton Height | 8 1/2 inch |
| Carton Width | 35 inch |
| Cutout Depth (in) | 19 inch |
| Cutout Height (in) | 2 7/8 inch |
| Cutout Width (in) | 29 inch |
| Depth | 20 5/16 inch |
| Height | 2 7/8 inch |
| Width | 30 3/16 inch |
| Gross Weight | 55 inch |
| Dimensions|Cutout Depth(IN,inches) | |
| Dimensions|Cutout Depth(IN,inches) | 19 |
| Dimensions|Cutout Height(IN,inches) | |
| Dimensions|Cutout Height(IN,inches) | 2 7/8 |
| Dimensions|Cutout Width(IN,inches) | |
| Dimensions|Cutout Width(IN,inches) | 29 |
| Dimensions|Depth(IN,inches) | |
| Dimensions|Depth(IN,inches) | 20 5/16 |
| Dimensions|Height(IN,inches) | |
| Dimensions|Height(IN,inches) | 2 7/8 |
| Dimensions|Width(IN,inches) | |
| Dimensions|Width(IN,inches) | 30 3/16 |
| Electrical|Amps | |
| Electrical|Amps | 15 |
| Electrical|Hz | |
| Electrical|Hz | 60 |
| Electrical|Power Cord Included | |
| Electrical|Power Cord Included | Yes |
| Electrical|Volts | |
| Electrical|Volts | 120 |
| EndecaProps|ProductOutletCategories | |
| EndecaProps|ProductOutletCategories | Cooking |
| Features|Automatic Pan Detection | |
| Features|Automatic Pan Detection | No |
| Features|Digital Display | |
| Features|Digital Display | No |
| Features|Downdraft Vent | |
| Features|Downdraft Vent | No |
| Features|Griddle | |
| Features|Griddle | Optional Accessory |
| Features|Heating Element On Indicator Light | |
| Features|Heating Element On Indicator Light | No |
| Features|Hot Surface Indicator Light | |
| Features|Hot Surface Indicator Light | No |
| Features|Installs Over Built-In Oven | |
| Features|Installs Over Built-In Oven | Yes |
| Features|LP Convertible | |
| Features|LP Convertible | Yes - Kit Included |
| Features|Power Boost | |
| Features|Power Boost | No |
| Features|Power Outage Compatible | |
| Features|Power Outage Compatible | Yes |
| GPC Code | |
| GPC Code | 10001951 |
| Home Delivery | |
| Home Delivery | Yes |
| IsBaseUnit | |
| isBaseUnit | true |
| IsConsumerUnit | |
| isConsumerUnit | true |
| IsDispatchUnit | |
| IsDispatchUnit | . |
| IsInvoiceUnit | |
| IsInvoiceUnit | true |
| IsOrderableUnit | |
| IsOrderableUnit | true |
| Product Type | |
| Product Type | EA |
| Refinement|Style | |
| Refinement|Style | Cooktops |
| UDEX | |
| UDEX | 1100400623 |
| Will Call | |
| Will Call | Yes |
Documentation
From the Manufacturer
Disclosures
Proposition 65 Warning for California ResidentsCancer and Reproductive Harm - P65Warnings.ca.gov
This sleek, gas-on-glass cooktop is a stylish option that complements many countertop surfaces. The easy-to-clean surface features full-width cast-iron grates that allow you to slide cookware across the cooktop without lifting. Powerful burner options range from 6,000 to 17,000 BTU allowing you to get exceptional results for simmering a sauce or searing a steak.
Features
Gas-on-Glass Surface
- Offers a stylish appearance and wipes clean easily.
- Provides the ability to use high-temperature cooking methods such as searing, stir-frying, and wok cooking as well as low temperatures suitable for simmering.
- Allows more accurate simmer control at the lowest setting, and is ideal for cooking smaller quantities of food, using smaller pots and pans.
- Automatically lights burners so no standing pilot light is needed.
- Enhance the beautiful look of the cooktop and allow easy movement of cookware around the entire cooking surface.
- Allows you to convert the cooktop so it can be used with LP gas.
