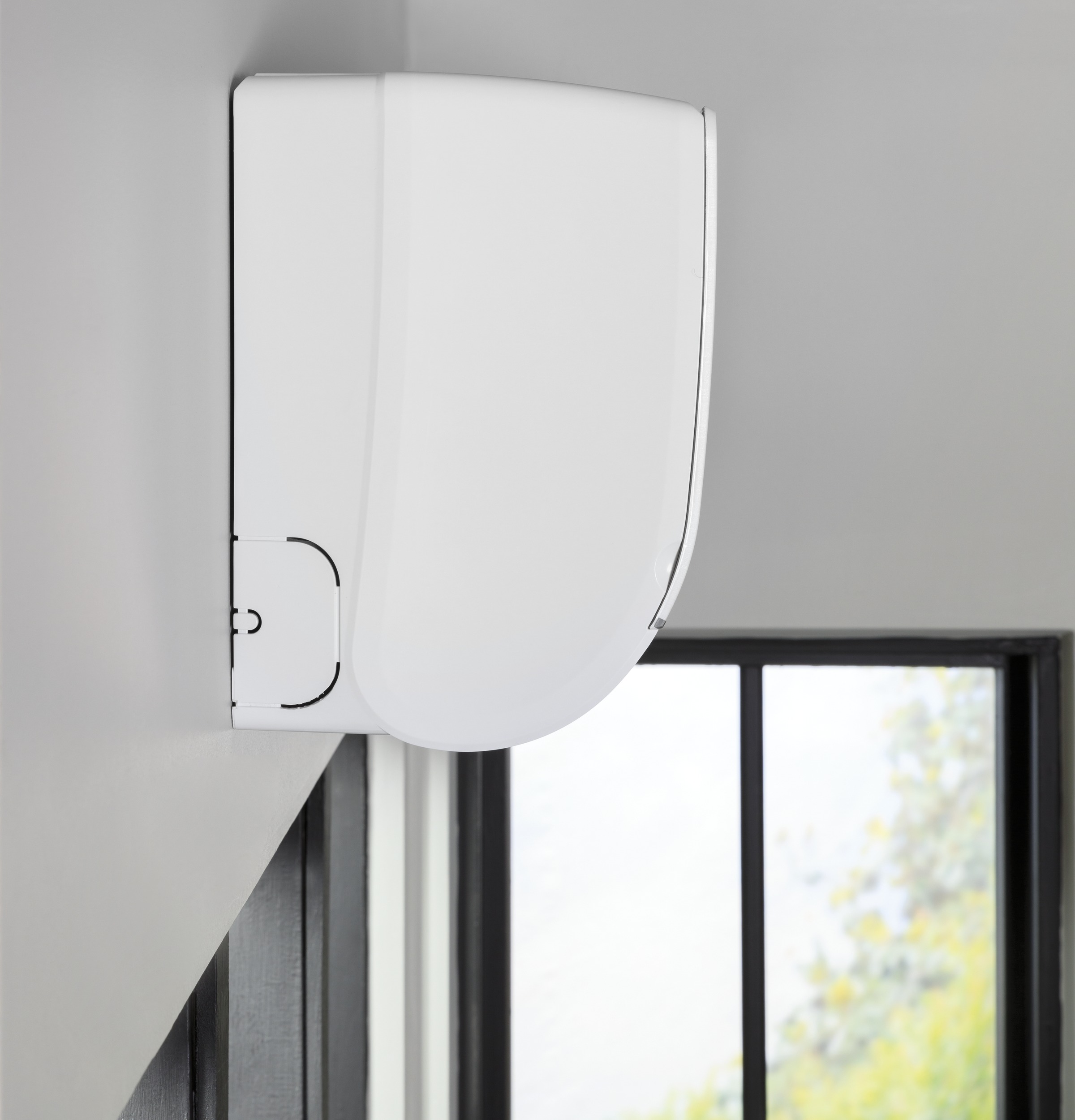

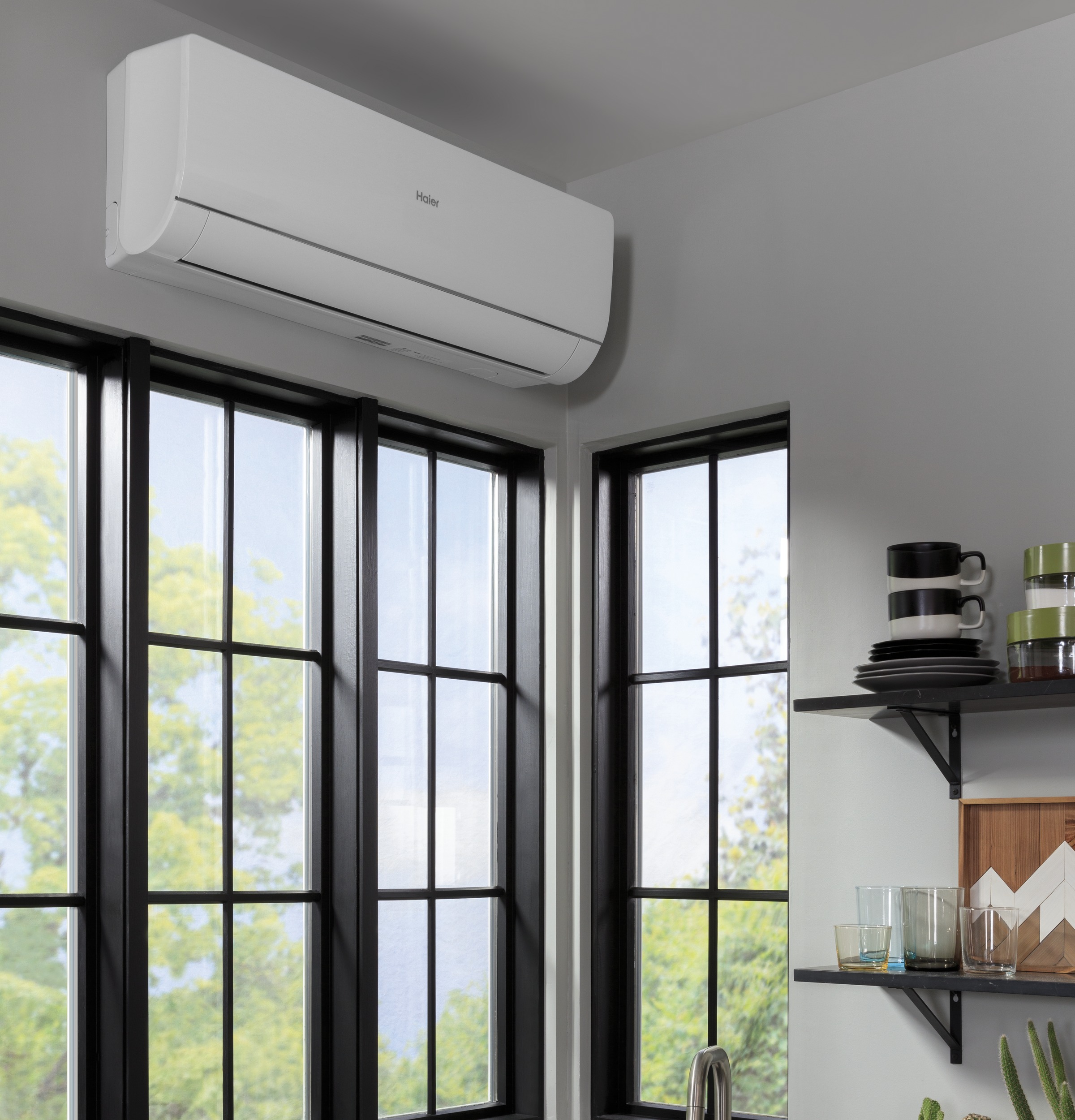

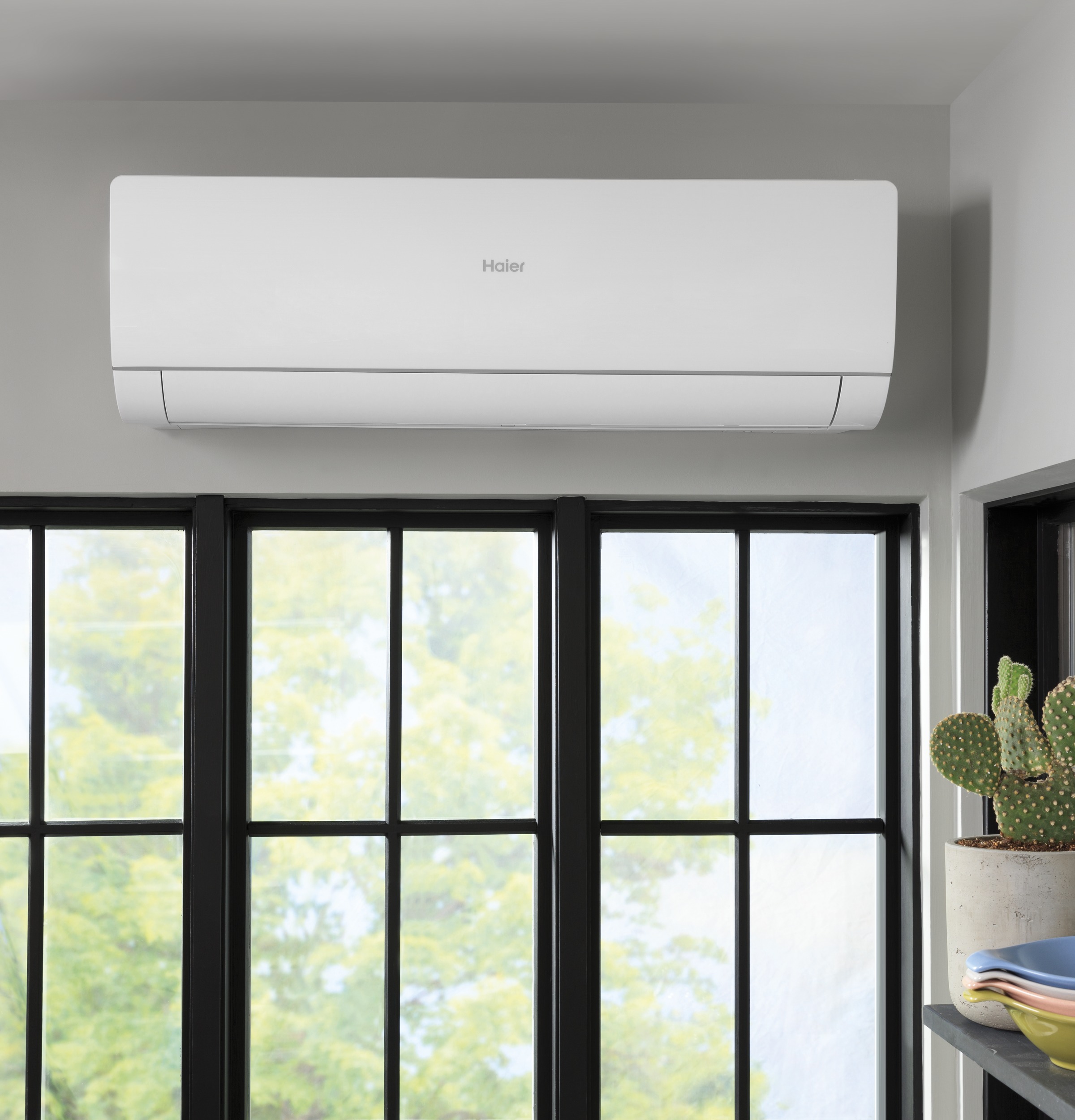

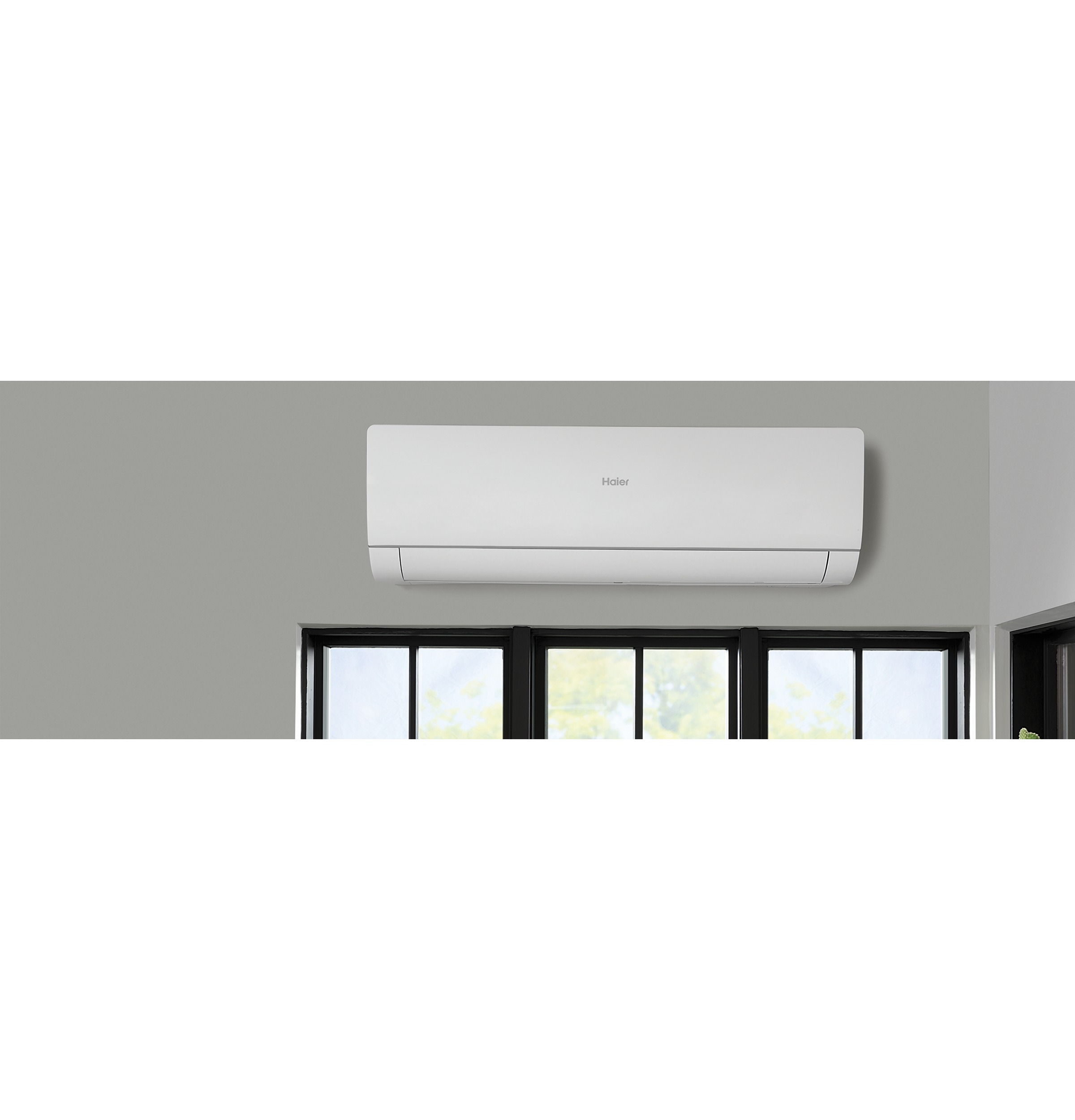

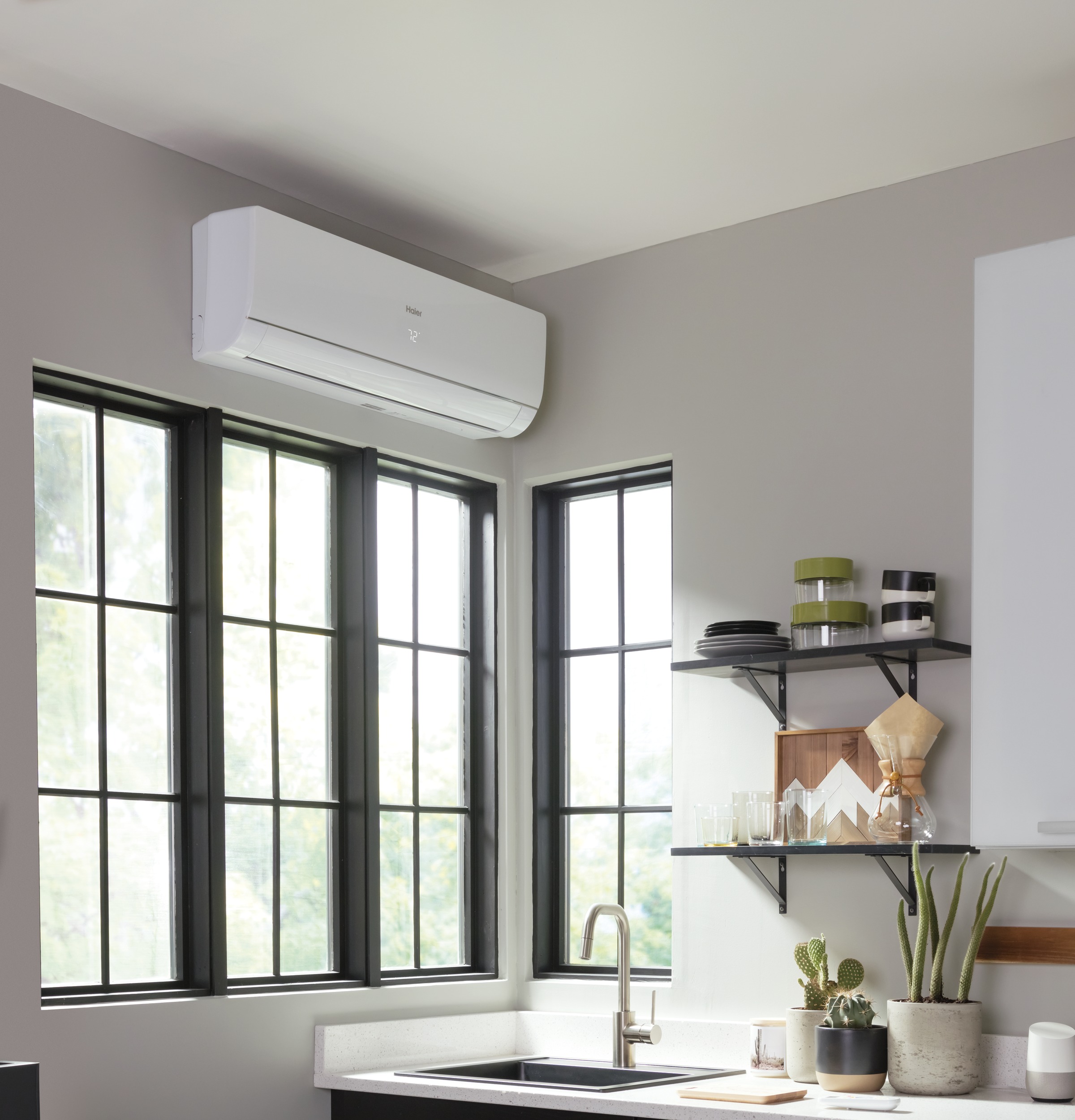

Multi-Zone 208-230V 12,000 BTU Single Zone Ductless Highwall Indoor Unit
Multi-Zone 208-230V 12,000 BTU Single Zone Ductless Highwall Indoor Unit
Call for Our Best Price
We might not be able to fulfill your order for the quantity requested
Dimensions
Width: 33 5/8
Height: 11
Depth: 8 1/16
Color
Features
- Loaded with features installers love such as an easy installation clip and a quick mount wall bracket
- Enjoy comfort made easy with a louver that adjusts airflow upward when cooling, or downward when heating
- Adjusts airflow upward when colling or downward when heating
- Cools or heats the room quickly
- Homeowners can monitor status, adjust temperature, and set cooling and heating schedules from anywhere using your smartphone. WiFi adapter QAWF01A required (sold separately)
- A special coating that whisks away condensate water
- Compatible with select Outdoor Units
- See Specification Guide for Full Details
Product Description
Multi-Zone 208-230V 12,000 BTU Single Zone Ductless Highwall Indoor Unit
Specification
| APPEARANCE | |
| Color Appearance | White |
| FEATURES | |
| Style | Highwall |
| Series | Arctic Multi, FlexFit Multi |
| Outdoor Model to Complete Multi Zone System | Select Multi Zone Outdoor Units |
| Fan Speeds CFM | 215, 265, 320, 380, 440 |
| Indoor Sound Level | 23, 27, 34, 39, 44 dBA |
| Unit Type | Indoor |
| Product Type | Multi Zone |
| Outdoor Model to Complete Single Zone System | Multi Zone System Only |
| POWER / RATINGS | |
| Cooling Rated Capacity BTU/Hr | 12,000 |
| Voltage/Hertz/Phase | 208-230/60/1 |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | 10-Year registered limited parts warranty, 5-Year limited parts warranty |
| Labor Warranty | No Warranty |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 22 lb |
| Suction O.D. Refrigerant Line | 3/8" |
| Liquid O.D. Refrigerant Line | 1/4" |
| Overall Depth | 8.0625 in |
| Overall Width | 33.625 in |
| Overall Height | 11 in |
| Approximate Shipping Weight | 26.89 lb |
